AmigaŽ RKM Libraries: 9 Intuition Input and Output Methods

This chapter discusses the input and output (I/O) techniques used with
Intuition.  I/O facilities are also available through Exec's device
subsystems, such as the console, serial and parallel devices.  (For more
information on these see the Amiga ROM Kernel Reference Manual: Devices.)

For graphical output to the Amiga's display, programs can use Intuition's
drawing features or handle rendering directly through calls to the
graphics library.  See the three graphics library chapters in this manual
for more information on display rendering.  For more about Intuition's
drawing features see the "Intuition Images, Line Drawing and Text"

 Overview of System I/O    Console Device I/O    IDCMP Flags
 Intuition Input           Using the IDCMP       Function Reference
 Intuition Output

9 Intuition Input and Output Methods / Overview of System I/O

This section provides a very simplified model of how Amiga I/O and
application programs interact.  The main elements of the Amiga's I/O
system are shown in the diagram below.  Input events begin when mouse
movement is detected by the gameport device or key presses are received by
the keyboard device.  These and other input events are merged into a
single stream by the input device, which then submits the stream to
Intuition for further processing.

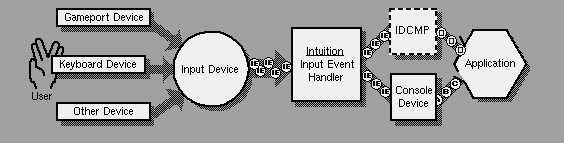

 Figure 9-1: Amiga Input Block Diagram
Figure 9-1: Amiga Input Block Diagram The application program can receive its input from Intuition or the Console device. The application may choose to listen to neither, one or both of these input sources.  Figure 9-2: Amiga Output Block Diagram

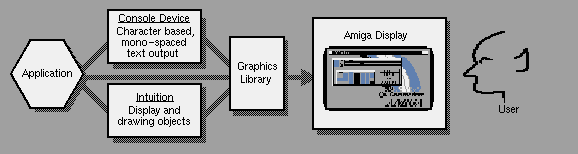

Figure 9-2: Amiga Output Block Diagram An application's display output can go through the high level interfaces of the console device or through the Intuition library. Additionally, display output may be sent directly to the graphics library. Notice that both the Console and Intuition call the graphics library to render to the display.

9 Intuition Input and Output Methods / Intuition Input

The Amiga has an input device to monitor all input activity.  The input
activity nominally includes keyboard and mouse events, but which can be
extended to include other types of input signals.  When the user moves the
mouse, presses a mouse button or types on the keyboard, the input device
detects the activity from the specific device, and constructs an

An InputEvent is a message describing a single event, such as the
transition of a key on the keyboard from up to down.

The input device then passes the input events down a prioritized chain of
input handlers, which are routines in memory that process the input
events.  The sequence of input events passing through this chain of input
handlers is known as the input stream.  Any handler linked into this chain
can monitor and modify the event stream.

Each input handler may block (consume) events, allow events to pass
through to the next handler in the chain or add new events to the sequence.

Other devices and programs can add input events to the input stream by
sending messages to the input device.  For instance, AmigaDOS is able to
generate an input event whenever a disk is inserted or removed.

See the "Input Device" chapter of the Amiga ROM Kernel Reference Manual:
Devices for more information on the Input device.

 Intuition as an Input Handler
 Receiving Input Events from Intuition
 IDCMP Events and the Input Focus

9 / Intuition Input / Intuition as an Input Handler

Intuition is an input handler linked into the input stream, and it
monitors and modifies events that it receives.  The input arrives at
Intuition as a single stream of events.  These events are filtered,
altered, and enhanced by Intuition, then dispatched to windows as
appropriate, or passed down to input handlers lower in the chain.  If the
active window has a console attached to it, then it can receive the input
events that are still left in the stream, which can include some events
that Intuition played a role in forming.

Many kinds of input event undergo little conversion by Intuition.  For
instance, raw keyboard events are not modified by Intuition (with the
exception of a few keystrokes that have special meaning).  Other events
may produce differing results based on Intuition's view of the system. For
example, when the mouse select button is pressed, the event may become a
gadget down-press event, a window activation event, or it may remain a
simple button press, depending on the mouse position and the arrangement
of windows and screens.  Still other events are consumed by Intuition, and
the application is not directly notified.  An example would be when the
select button is pressed over a system gadget.

Intuition is also the originator of certain kinds of events.  For example,
a window-refreshing event is generated when Intuition discovers that part
of a window is in need of redrawing.  This might have resulted indirectly
from some other input (for example, the user might have dragged a window),
but not necessarily (the refresh might have been necessitated by a program
bringing a window to the front).

9 / Intuition Input / Receiving Input Events from Intuition

There are two channels through which a window can receive events destined
for it.  The usual way is for the application to ask Intuition to send it
messages which are based on the input event that Intuition has processed.
These messages, called IntuiMessages, are standard Amiga Exec messages,
and are sent to a port called an Intuition Direct Communications Message
Port, or IDCMP.  Every window may have an IDCMP associated with it
(pointed to by Window.UserPort).

There are many classes of IntuiMessages, and the application can control
which classes of events are routed to its window's port by setting the
appropriate IDCMP flags.  When Intuition has an event to send, but the
window does not have the corresponding IDCMP flag set, the event is
generally passed along to the next input handler in the chain.  One input
handler that resides below Intuition's is the console device's handler.
If your application's window has a console attached to it, the console
device will generally convert events it receives into console code
sequences, and send those to your console. In this manner, you can hear
these events.

Because IntuiMessages and the IDCMP are the primary way in which
applications receive communication from Intuition, discussions elsewhere
in the manual frequently refer to events from Intuition as messages,
IntuiMessages, or IDCMP messages.  However, most of the information sent
as IntuiMessages is also available through the console device, though that
option is used less often.  Elsewhere in this chapter, you can learn how
getting your events through the console differs from getting them through
your IDCMP.

Whichever way an application chooses to get its messages, it is frequently
designed to be event-driven.  That is to say, after some amount of
initialization, the application will go into a state where it is waiting
for some event to happen.  This event could be an input event, or some
other kind of event.  Based on the event received, the application would
take appropriate action, and return to its waiting state.

9 / Intuition Input / IDCMP Events and the Input Focus

Although at any given time many applications may be waiting for input, in
most cases only the active application (the one with the currently active
window) will receive IDCMP messages.

Since the IDCMP messages are, in general, directed to a single window,
this window is said to have the input focus--the input from a variety of
sources is focused on this single location.

The active window is generally selected by the user, although it is
possible for applications to change the active window.  See the
"Intuition Windows" chapter for information on selecting or setting the
active window.  Be aware that changing the active window will change the
input focus.  Usually this change is performed following user action--the
user selects a window with the mouse, or activates a new application.
Changes to the input focus without user control, such as activating
another window while the user is working in an application, may confuse
the user. Perform such changes with great care.

Not all events are sent only to the active IDCMP.  Some events, such as
"disk inserted," may be useful to many programs, so Intuition translates
these events into separate messages, one for each application.

9 Intuition Input and Output Methods / Intuition Output

Visual program output, the information written to the display, is sent
through one of three channels.

  * Imagery may be sent to the graphics library primitives.  Graphics
    library includes functions for line drawing, area fill, specialized
    animation and output of text.  See the graphics library chapters
    "Graphics Primitives", "Graphics Libraries and Text" and
    "Graphics Sprites, Bobs and Animation" for more on these functions.

  * Use the Intuition library support functions for rendering text,
    graphical imagery, and line drawing.  These provide some of the same
    functions as the graphics library routines, but the Intuition
    functions perform more of the detail work for you.  See the chapter
    "Intuition Images, Line Drawing and Text" for more information on
    Intuition rendering functions.  Also see, of course, the chapters on
    screens, windows, gadgets, menus and requesters for information on
    managing the display.

  * Output character-based data via the console device. The console
    device is discussed in the next section.

9 Intuition Input and Output Methods / Console Device I/O

A program receives its input stream either directly from Intuition or via
another mechanism known as the console device.

The console device may be used both as a source for input and as a
mechanism for output.  Often, it is convenient to use only the console
device for input and output.  In particular, character-based programs can
open the console and use it for all I/O without worrying about windows,
bitmaps, or message ports.

The console device gives the program "cooked" input data, including key
code conversions to ASCII and conversions of Intuition generated events,
such as IDCMP_CLOSEWINDOW, to ANSI escape sequences.

The console device output provides features such as automatic line
wrapping and scrolling.  If an application just wants to output text, it
may choose to use the console device, which provides formatted text with
little fuss.

If the application is not character-based, it may be better for the it to
use an IDCMP for input and render graphics and text directly through
Intuition and the graphics library primitives.

If necessary, it is possible to open both the console device and an IDCMP
for input.  Such a program might need ASCII input, formatted output and
the IDCMP verification functions (for example, to verify that it has
finished writing to the window before the user can bring up a requester).

For more information on the console device, see the "Console Device"
chapter of the Amiga ROM Kernel Reference Manual: Devices.

9 Intuition Input and Output Methods / Using the IDCMP

The IDCMP allow the application to receive information directly from
Intuition.  The program can use the IDCMP to learn about mouse, keyboard
and other Intuition events.  Also, certain useful Intuition features, most
notably the verification functions (described under "IDCMP Flags" below),
require that the IDCMP be opened, as this is the only mechanism available
for accessing these features.

The IDCMP consists of a pair of message ports, which may be allocated and
initialized by Intuition at the request of the program.  Alternately, the
application may choose to manage part of the allocation, such that one
port is supplied by the application and one port is supplied by Intuition.
These ports are standard Exec message ports, used to allow interprocess
communications in the Amiga multitasking environment.  To learn more about
message ports and message passing, see the "Exec Messages and Ports"

The IDCMP is always associated with a window, it is not possible to have
an IDCMP without an open window.  The IDCMP is made up of several fields
in the Window structure:

  * IDCMPFlags stores the IDCMP flags currently set for this port. This
    field should never be directly set by the application; use the
    function ModifyIDCMP() or set them when the window is opened instead.

  * UserPort is a pointer to the standard Exec message port where the
    application receives input event messages from Intuition

  * WindowPort is a pointer to the reply message port used by Intuition.
    The messages sent by Intuition are set up such that ReplyMsg() will
    return them to this port.

To open these ports automatically, set at least one of the IDCMP flags in
the OpenWindowTagList() call.  To free these ports later in the program,
call the function ModifyIDCMP() with NULL for the IDCMP flags or simply
close the window.

    Don't Reply Any Messages After the IDCMP is Freed.
    If an IDCMP is freed, either by calling ModifyIDCMP() or by
    closing the window, Intuition will reclaim and deallocate all
    messages waiting at that port without waiting for a ReplyMsg().
    If the program attempts to ReplyMsg() to an IntuiMessages after
    the IDCMP is closed, the system will probably crash.

If the IDCMP flags are NULL when the window is opened, no ports will be
allocated when the window is created.  To have Intuition allocate these
ports later, call the function ModifyIDCMP() with any of the IDCMP flags
set.  (Starting in V37, ModifyIDCMP() returns NULL if it was unable to
create the necessary message ports.  Do not check the return code under
V36 or earlier.)

Once the IDCMP is opened, with the ports allocated, the program can
receive many types of information directly from Intuition, based on the
IDCMP flags that are set.

The IDCMP allows the application to receive only the events that it
considers important.  The program can, for instance, choose to learn about
gadget events but may not want to learn about other mouse or keyboard
events.  This is done by providing a "filter" or "mask" value for the
IDCMP which tells Intuition which events it should send to this specific
port.  Only messages with a type matching one of the flags set in the
Window structure's IDCMPFlags field will be sent to this port.  These
values may be set at creation time, or modified by calling the function

Messages sent to the IDCMP are instances of the structure IntuiMessage.
This is an extended form of the Exec Message structure which allows
Intuition to send user interface specific information to the application.
The IntuiMessage structure is discussed at length below.

After the application opens an IDCMP, it must monitor the port for
messages.  At a minimum, this involves removing all messages from the port
and replying to them.  An event loop which processes messages arriving at
the IDCMP is discussed below.

 Standard IntuiMessage Event Loop    Setting Up A Custom User Port
 Event Loop Example                  IntuiMessages

9 / Using the IDCMP / Standard IntuiMessage Event Loop

The application should handle events quickly.  Any delay in this handling
will make the user interface appear sluggish to the user.  Additionally,
certain events such as IDCMP_SIZEVERIFY may time-out if the application
does not respond to them quickly  (this is to help prevent system
deadlocks).  The action taken by Intuition when an event times-out may not
match the action desired by the program.  When IDCMP_SIZEVERIFY times out,
the window sizing operation is cancelled by Intuition.

Code should be able to handle the case where there are multiple events
waiting at the port.  When events are being generated quickly, Intuition
may post many events to the IDCMP before the application regains control.
This can happen regardless of how fast the application processes the
messages waiting at the port.  Since messages queue up but signals do not,
the application may not see a signal for each message posted.  Because of
these facts, the code should remove all the messages waiting at the port,
regardless of the number, each time Wait() returns.

Code should also be able to handle the case where the signal is set but no
events are waiting at the port.  This could happen if a new message
arrives at the IDCMP while an application is still processing the previous
message.  Since applications typically process all queued messages before
returning to Wait(), the second message gets handled with the signal bit
still set.  The subsequent call to Wait() will return immediately even
though no message is present.  These cases should be quietly ignored.

9 / Using the IDCMP / Setting Up A Custom User Port

An application can use its own message port for the IDCMP instead of the
one set up by Intuition, although some care is required.

As described earlier, IDCMP communication takes place through a pair of
Exec message ports attached to a window: the UserPort and the WindowPort.
The UserPort is the port where the application receives IDCMP messages
from Intuition.  The WindowPort is the reply port where Intuition receives
replies from the application (via the ReplyMsg() function).

In the simplest case, Intuition allocates (and deallocates) both of these
ports when the program opens a window with non-NULL IDCMP flags.
Intuition will also allocate these ports if the application calls
ModifyIDCMP() with non-NULL flags for a window that has NULL IDCMP flags.
These port variables will be set to NULL if there is no message port
allocated, otherwise they will contain a pointer to a message port.

If the WindowPort is not already opened when either OpenWindow() or
ModifyIDCMP() is called, it will be allocated and initialized.

The UserPort is checked separately to see whether it is already opened.

When Intuition initializes the UserPort, it also allocates a signal bit
with a call to AllocSignal().  Since the application makes the call to
OpenWindowTagList() or ModifyIDCMP(), this signal bit is valid for the
application's task.  The address of the application's task is saved in the
SigTask variable of the message port.

The program may choose to supply its own UserPort.  This might be done in
an environment where the program is using several windows and would prefer
to monitor the input using only one message port.  This is done by with
the following procedure:

 1. Create a port for the IDCMP by calling either the Exec function
    CreateMsgPort() or the amiga.lib function CreatePort(), both of which
    return a pointer to a port.  (CreateMsgPort() is a new Exec function
    in V36 and can therefore only be used on systems running Release 2 or
    a later version of the OS.)

 2. Open the windows with no IDCMP flags set.  This will prevent
    Intuition from allocating a port for this window.

 3. Place a pointer to the port created in step 1 into the UserPort field
    of the Window structure.

 4. Call ModifyIDCMP() to set the desired IDCMP flags for the port.
    Intuition will use the port supplied with the window.

    Be Careful with Shared IDCMP Ports.
    If the application is sharing an IDCMP among several windows, it
    must be very careful not to call ModifyIDCMP(window,NULL) for any
    of the windows that are using the shared port, as this will free the
    port and the signal bit.

 5. When an application decides to close a window that has a shared
    IDCMP, there may be messages waiting at the port for any of the
    windows including the window being closed.  It is essential that
    messages destined for a given window be removed and replied to before
    that window is closed.

    CloseWindowSafely(), listed in the next example, performs proper
    message cleanup before closing such a window.  It also sets the
    window's UserPort to NULL so that Intuition knows not to delete the
    port, which should be done by the application in this case.  It is
    incorrect (and dangerous) to simply call CloseWindow() on a window
    that has a shared IDCMP.

    Note that CloseWindowSafely() assumes that the window has a UserPort.

 6. After all windows have been closed, and the port has been removed
    from each, delete the port that was created in step 1.  Use the
    amiga.lib function DeletePort() (if CreatePort() was used) or the
    Exec function DeleteMsgPort() (if CreateMsgPort() was used).

 Closing a Window with a Shared IDCMP

9 / Using the IDCMP / IntuiMessages

The IntuiMessage structure is an Exec Message that has been extended to
include Intuition specific information.  The ExecMessage field in the
IntuiMessage is an actual instance of a Message structure and is used by
Exec to manage the transmission of the message.  The Intuition extensions
of the IntuiMessage are used to transmit specialized Intuition data to the

    struct IntuiMessage
        struct Message ExecMessage;
        ULONG Class;
        UWORD Code;
        UWORD Qualifier;
        APTR IAddress;
        WORD MouseX, MouseY;
        ULONG Seconds, Micros;
        struct Window *IDCMPWindow;
        struct IntuiMessage *SpecialLink;

The IntuiMessage structure fields are as follows:

    This field is maintained by Exec.  It is used for linking the message
    into the system and broadcasting it to a message port.  See the
    chapter "Exec Messages and Ports" for more information on the Message
    structure and its use.

    Class contains the IDCMP type of this specific message.  By comparing
    the Class field to the IDCMP flags, the application can determine the
    type of this message.  Each message may only have a single IDCMP type.

    Code contains data set by Intuition, such as menu numbers or special
    code values.  The meaning of the Code field changes depending on the
    IDCMP type, or Class, of the message.  Often the code field will
    simply contain a copy of the code of the input event which generated
    this IntuiMessage.

    For example, when the message is of class IDCMP_RAWKEY, Code contains
    the raw key code generated by the keyboard device.  When the message
    is of class IDCMP_VANILLAKEY, Code contains the key mapped ASCII

    This contains a copy of the ie_Qualifier field that is transmitted to
    Intuition by the input device.  This field is useful if your program
    handles raw key codes, since the Qualifier tells the program, for
    instance, whether or not the Shift key or Ctrl key is currently
    pressed.  Check the <devices/inputevent.h> file for the definitions
    of the qualifier bits.

MouseX and MouseY
    Every IntuiMessage will have the mouse coordinates in these
    variables.  The coordinates can either be expressed as absolute
    offsets from the upper left corner of the window, or expressed as the
    amount of change since the last reported positions (delta). If
    IDCMP_DELTAMOVE is set, then these numbers will represent delta
    positions from the last position.  All messages will have zero in
    these values except IDCMP_MOUSEMOVE and IDCMP_MOUSEBUTTON events,
    which will have the correct delta values for the movement.  If
    IDCMP_DELTAMOVE is not set, then these numbers are the actual window
    offset values.

Seconds and Micros
    These values are copies of the current system clock, in seconds and
    microseconds.  They are set when Intuition generates the message.

    Microseconds (Micros) range from zero up to one million minus one.
    The 32 bits allocated to the Seconds variable has enough accuracy to
    count up to 139 years.  Time is measured from Jan 1, 1978.

    Typically this variable contains the address of some Intuition
    object, such as a gadget.  The type of the object depends on the
    Class of the IntuiMessage.  Do not assume that the object is of a
    certain type before checking the Class of the object.

    The IAddress pointer is defined only for the following IDCMP Classes.
    Do not attempt to dereference or otherwise interpret the IAddress
    field of any other type of IntuiMessage.

        IntuiMessage Class  Meaning of IAddress Field
        ------------------  -------------------------
        IDCMP_GADGETDOWN    IAddress points to the gadget.
        IDCMP_GADGETUP      IAddress points to the gadget.
        IDCMP_RAWKEY        IAddress points to the dead-key information.
        IDCMP_IDCMPUPDATE   IAddress points to a tag item list.
        Other classes       No meaning.

    In particular, for IDCMP_MOUSEMOVE IntuiMessages emanating from
    GACT_FOLLOWMOUSE gadgets, the IAddress field does not point to the
    gadget.  Interpreting the IAddress as a gadget pointer and trying to
    access the gadget's fields before ascertaining that the event is an
    IDCMP_GADGETUP or IDCMP_GADGETDOWN event is incorrect, and can lead
    to subtle or serious problems.

    (Note that GadTools gadgets do arrange for the IAddress to point to
    the gadget when IDCMP_MOUSEMOVE messages appear).

    Contains the address of the window to which this message was sent.
    If the application is sharing the window's UserPort between multiple
    windows, IDCMPWindow allows it to determine which of the windows the
    message was sent to.

    For system use only.

9 Intuition Input and Output Methods / IDCMP Flags

The application specifies the information it wants Intuition to send to it
via the IDCMP by setting IDCMP flags.  These may be set either when
opening the window or by calling ModifyIDCMP().

The flags set may be viewed as a filter, in that Intuition will only post
IntuiMessages to an IDCMP if the matching flag is set.  Thus, the
application will only receive the IDCMP messages whose Class matches one
of the bits set in the window's IDCMP.

For many of these messages, there is a separation of the act of filtering
these messages and causing Intuition to send the messages in the first
place.  For instance, menu help events may be activated for a window by
setting the WA_MenuHelp attribute when the window is opened.  However, the
IDCMP will only receive the messages if the IDCMP_MENUHELP flag is set.
If this flag is not set, then the events are passed downstream in the
input and may be picked up by the console device.

 Event Message Classes and Flags    Verification Functions

9 / IDCMP Flags / Event Message Classes and Flags

 Mouse Event Message Classes and Flags
 Gadget Event Message Classes and Flags
 Menu Event Message Classes and Flags
 Requester Event Message Classes and Flags
 Window Event Message Classes and Flags
 Other Event Message Classes and Flags

9 / / Event Message Classes and Flags / Mouse Flags

    Contains reports about mouse button up and down events.  The events
    will be sent to the application only if they are not used internally
    by Intuition.

    The Code field contains information on the specific mouse button
    event this message represents.  The Code field will be equal to
    depending on the button pressed or released.  In general, the select
    button is the left mouse button, the menu button is the right mouse
    button and the middle button is an optional third button usually
    located between the select and menu buttons.

    Often, a mouse button event has extra meaning to Intuition, and the
    application may hear about it through a more specific message, for
    example a gadget or menu event.  Other times, no event is generated
    at all, such as when the user depth-arranges a screen by clicking on
    the screen depth gadget.  Note that menu button events are normally
    consumed by Intuition for menu handling.  If an application wishes to
    hear IDCMP_MOUSEBUTTONS events for the menu button, it must set the
    WA_RMBTrap attribute for its window.  See the "Intuition  Windows"
    chapter for more information.

    Reports about mouse movements, sent in the form of x and y
    coordinates relative to the upper left corner of the window.  One
    message will be sent to the application for each "tick" of the mouse.

    The application can opt to receive IDCMP_MOUSEMOVE events only while
    certain gadgets are active, or during normal window operation.  These
    events are sent whenever a gadget with GACT_FOLLOWMOUSE gadget is
    active, or for any window that has the WA_ReportMouse attribute set.
    This window attribute can be set or cleared by the application at
    will.  See the "Intuition Windows" chapter for full details.

    Requesting IDCMP_MOUSEMOVE messages can create a very large volume of
    messages arriving at the window's IDCMP.  Do not request these
    messages unless the program is prepared to keep up with them.
    Starting in V36, Intuition limits the number of mouse move events
    that pile up at your IDCMP.

    All IDCMP messages contain a mouse x and y position that can be
    absolute values or delta values.  See IDCMP_DELTAMOVE, below.  If the
    application requires a less frequent reporting of the mouse position,
    consider using IDCMP_INTUITICKS.  While IDCMP_MOUSEMOVE events are
    generated by changes in the mouse's position, IDCMP_INTUITICKS
    IntuiMessages are based on a timer.  Since they contain mouse
    coordinates, they effectively sample the mouse position.  These
    message come often enough for many applications, but not so
    frequently as to swamp the application.

    The program will not be sent IDCMP_MOUSEMOVE messages while Intuition
    has the layers of the screen locked (during menu operations and
    window sizing/dragging).  This avoids problems of messages
    accumulating while the program is blocked, waiting to render into a
    locked layer.

    IDCMP_DELTAMOVE is not a message type, and events will never be sent
    to the application with this IDCMP identifier.  This flag is a
    modifier, which changes how mouse movements are reported.  When this
    flag is set, mouse movements are sent as delta values rather than as
    absolute positions.

    The deltas are the amount of change of the mouse position from the
    last reported position.  If the mouse does not move, then the delta
    values will be zero.

    This flag works in conjunction with the IDCMP_MOUSEMOVE flag.  When
    IDCMP_DELTAMOVE is set, IDCMP_MOUSEBUTTONS messages will also have
    relative values, instead of the absolute window position of the mouse.

    Delta mouse movements are reported even after the Intuition pointer
    has reached the limits of the display.  That is, if the pointer has
    reached the edge of the display and the user continues to move the
    mouse in the same direction, the IDCMP_MOUSEMOVE messages will
    continue to report changes in the mouse position even though the
    pointer is no longer moving.

9 / / Event Message Classes and Flags / Gadget Flags

    IDCMP_GADGETDOWN messages are sent when the user selects a gadget
    that was created with the GACT_IMMEDIATE flag set.  The IntuiMessage
    structure's IAddress field will contain a pointer to the selected

    IDCMP_GADGETUP messages are sent when the user selects a gadget that
    was created with the GACT_RELVERIFY flag set.  The IntuiMessage
    structure's IAddress field will contain a pointer to the selected

    IDCMP_CLOSEWINDOW messages are sent when the user selects the
    window's close gadget.  Intuition does not close the window when the
    close gadget is selected.  Rather, an IDCMP_CLOSEWINDOW message is
    sent to the window's IDCMP.  It is up to the application to clean up
    and close the window itself.  If closing a window means losing some
    data (perhaps the spreadsheet the user was working on), it would be
    appropriate for the application to first confirm that the user really
    meant to close the window.

9 / / Event Message Classes and Flags / Menu Flags

    This flag indicates that the user has pressed the menu button.  If a
    menu item was selected, the menu number of the menu item can be found
    in the Code field of the IntuiMessage.  If no item was selected, the
    Code field will be equal to MENUNULL.

    This is a special verification mode which allows the program to
    confirm that it is prepared to handle Intuition rendering, in this
    case, allowing menus to be drawn in the screen.

    This is a special kind of verification, in that any window in the
    entire screen that has this flag set must respond before the menu
    operations may proceed.  Also, the active window of the screen is
    allowed to cancel the menu operation.  This is unique to
    IDCMP_MENUVERIFY.  Refer to the "Intuition Menus" for a complete

    Also see the "Verification Functions" section below for more

    This message is sent by Intuition when the user selects the Help key
    while the menu system is activated.  If a menu item was selected, the
    menu number of the menu item can be found in the Code field of the
    IntuiMessage.  If no item was selected, the Code field will be equal
    to MENUNULL.

    These messages will only be sent if the WA_MenuHelp attribute is set
    for the window.

    The menu number returned in IDCMP_MENUHELP may specify a position
    that cannot be generated through normal menu activity.  For instance,
    the menu number may indicate one of the menu headers with no item or
    sub-item.  See the chapter on "Intuition Menus" for more information.

9 / / Event Message Classes and Flags / Requester Flags

    Intuition sends an IDCMP_REQSET message to the window each time a
    requester opens in that window.

    Intuition sends an IDCMP_REQCLEAR message to the window each time a
    requester is cleared from that window.

    Set this flag to allow the application to ensure it is prepared for
    Intuition to render a requester in the window.  With this flag set,
    Intuition sends the application a message that a requester is
    pending, and then waits for the application to reply before drawing
    the requester in the window.

    If several requesters open in the window, Intuition asks the
    application to verify only the first one.  After that, Intuition
    assumes that all output is being held off until all the requesters
    are gone.

    By setting the IDCMP_REQSET and IDCMP_REQCLEAR flags, the application
    can track how many requesters are open in the window and when the
    last requester is cleared.  Once all of the requesters are cleared
    from the window, it is safe to write to the window until another
    IDCMP_REQVERIFY is received.

    See the "Verification Functions" section below for more discussion on
    using this flag.

9 / / Event Message Classes and Flags / Window Flags

    Intuition sends this message after the user has resized the window.
    After receiving this, the program can examine the size variables in
    the window structure to discover the new size of the window.  The
    message is sent, even if the size of the window did not actually

    This message is sent whenever the window needs refreshing.  This flag
    makes sense only with windows that have a refresh type of
    WA_SimpleRefresh or WA_SmartRefresh.

    As a minimum, the application must call BeginRefresh() and
    EndRefresh() for the window after receiving an IDCMP_REFRESHWINDOW
    event.  Create the window with the WA_NoCareRefresh attribute if you
    do not want to manage these events.  See the "Intuition Windows"
    chapter for details.

    Most of the graphics library calls used for display output are
    compatible with Intuition, with the exception of ScrollRaster().
    Intuition will not send an IDCMP_REFRESHWINDOW event when damage is
    caused to a window by ScrollRaster().  This may happen in a simple
    refresh window which is partially obscured by another window--the
    region that scrolls out from behind the front window will be damaged,
    but the window will receive no notification.  Check the LAYERREFRESH
    bit in the Layer structure Flags field to see if damage did happen as
    a result of ScrollRaster().

    Set this flag if the program must complete some operation before the
    user sizes the window.  When the user sizes the window, Intuition
    sends an IDCMP_SIZEVERIFY message to the application and then waits
    until the program replies before allowing the user to size the
    window.  See the "Verification Functions" section below for some
    things to consider when using this flag.

    Set these flags to discover when the window becomes activated or

9 / / Event Message Classes and Flags / Other Flags

    IDCMP_VANILLAKEY messages return keyboard events translated into the
    current default character keymap.  The mapped character value is
    returned in the Code field of the IntuiMessage structure.

    An IDCMP_VANILLAKEY message is sent only if the translation results
    in a single byte value, therefore the program cannot read the Help or
    function keys using IDCMP_VANILLAKEY.

    Starting with V36, programs using IDCMP_VANILLAKEY which also require
    the additional information of special keys, such as the Help key and
    the function keys, may set both IDCMP_VANILLAKEY and IDCMP_RAWKEY.
    When this combination is used, all keypresses that map to single
    character values will be returned as IDCMP_VANILLAKEY events; all
    other keyboard events will be sent as IDCMP_RAWKEY messages.  Note
    that IDCMP_VANILLAKEY processing uses all of the key-up events, so
    the application will only receive key-down events in the IDCMP_RAWKEY

    IDCMP_RAWKEY messages give the raw keycodes from the keyboard. The
    numeric value of the keycode is sent in the Code field. Separate
    codes are returned for key down and key up.  Qualifier codes, such as
    Shift or Alt and whether this key is a repeat, may be found in the
    Qualifier field of the message.

    In general, the application should not assume any correspondence
    between the keycode and the key value.  Character positions on the
    keyboard change from country to country, and the application should
    respect the keymap set by the user.

    Programs using IDCMP_RAWKEY messages should perform their own key
    mapping by calling the console.device function RawKeyConvert(), or
    the keymap.library function MapRawKey().  (The latter is a bit more
    convenient, but is only available under V36 and higher).  The Autodoc
    for the MapRawKey() function shows how you can process so-called dead
    keys.  A dead key is a key combination that has no immediate effect,
    but instead modifies a subsequent keystroke.  For example, on the
    default keymap, Alt-F is a dead key for the acute accent mark.  The
    sequence of Alt-F followed by the E key yields an é with an acute

    For an example of key mapping using the RawKeyConvert() call, see the
    rawkey.c example in the "Intuition Mouse and Keyboard" chapter.

    The application can assume that certain keys will always return the
    same raw keycode, these keys do not have to be mapped.  In general
    these keys are in the high part of the keymap, above hex 40, and
    includes all non-alphanumeric keys.  The fixed keys include the
    function keys, backspace, delete, help and cursor keys.

    IDCMP_NEWPREFS messages are sent when the system Preferences are
    changed by a call to SetPrefs().  The program can learn of these
    changes by setting this flag.

    After receiving a message of class IDCMP_NEWPREFS, the application
    should call GetPrefs() to obtain a copy of the new Preferences.

    Under the new Preferences scheme used in Release 2 and later versions
    of the OS, an IDCMP_NEWPREFS message will not always be sent when the
    user changes a Preferences setting.  Only Preferences values
    available under V34, i.e., those that can be modified by a call to
    SetPrefs(), will cause an IDCMP_NEWPREFS message to be sent.  New
    Preferences items such as overscan or font settings rely on
    filesystem notification for monitoring changes.  See the chapter on
    "Preferences" for more information.

    This message type is broadcast to all IDCMP that have this flag set,
    not just to the active window.  If the application has this flag set,
    it should be prepared to handle the event even if it is not active.

    When the user inserts or removes a floppy disk from any drive,
    Intuition will send one of these message types.

    This message type is broadcast to all IDCMP that have this flag set,
    not just to the active window.  If the application has this flag set,
    it should be prepared to handle the event even if it is not active.

    Intuition sends these messages to the active window based on an
    internal timer which "ticks" roughly ten times a second. This
    provides the application with simple timer events from Intuition.

    Intuition does not allow IDCMP_INTUITICKS events to accumulate at a
    port.  After an IDCMP_INTUITICKS message has been sent to a port,
    Intuition will not send another until the application replies to the
    first.  This means that an application that has not been able to
    service the IDCMP for an extended period can expect at most one
    IDCMP_INTUITICKS message to be waiting at the port.

    These events are to be used as "prods", and not as time counters.  Do
    not rely on the timing accuracy of the event, or on the exact
    frequency at which they appear.  Remember, IDCMP_INTUITICKS will only
    be sent to the active window.  If the user selects another window,
    the events will no longer be received at the first window.

    Used for notification from Boopsi custom gadgets.  See the chapter on
    "BOOPSI" for more information.  The IAddress field contains a pointer
    to a tag item list.  Tag lists are described in the chapter
    "Utility Library".

    This message provides the window with notification of any change in
    the size or position of a window.

There are two other message classes reserved for system use:

    Special messages for Workbench, system use only.

    For internal tracking by Intuition, system use only.

9 / IDCMP Flags / Verification Functions

that Intuition sends an IntuiMessage to the application and then waits for
the application to reply before Intuition proceeds.  The application
replies by calling the Exec function ReplyMsg().

The implication is that the user requested some operation but the
operation will not happen immediately and, in fact, will not happen at all
until the application says it is safe.  Because this delay can be
frustrating and intimidating, the program should strive to make the delay
as short as possible.  An application should always reply to a
verification message as soon as possible.

These problems may be overcome by setting up a separate task to monitor
the IDCMP and respond to incoming IntuiMessages immediately.  This is
recommended where there is heavy traffic through the IDCMP, which occurs
when many IDCMP flags are set.  Monitoring with a separate task may not be
appropriate if the main program must synchronize with the event before it
can respond to the message.

In previous versions of the operating system, it was not safe to leave any
of the VERIFY functions enabled at a time when the task is unable to
respond for a long period.  This restriction included calls to AmigaDOS
directly (with Open(), for example), or indirectly (with OpenLibrary(),
for a disk based library, for example), when a VERIFY function was active.
This was because there are many cases where AmigaDOS will put up a
requester prompting the user for input, and Intuition may end up waiting
for the application to reply to the VERIFY message, while the application
waits for the AmigaDOS call to finish.  Prior to Release 2, this deadlock
would freeze the Amiga.

Beginning with V36, Intuition will no longer wait forever for the
application to respond to the verify messages.  These messages will now
time-out; that is, if the application does not respond within a set
period, Intuition will act as if it had.  Even in this case, though, the
machine will appear to be locked up until the time-out occurs.

The application should use ModifyIDCMP() to turn off all VERIFY messages
before calling AmigaDOS, or functions that may call AmigaDOS.

If the application sets up a separate task to monitor the IDCMP, and the
task monitoring the IDCMP does not call AmigaDOS functions, and if the
monitor task will always be able to reply to the VERIFY message without
any help from the other task, then the above warning does not apply.

For additional information, see the IDCMP_MENUVERIFY discussion in the
"Intuition Menus" chapter, the IDCMP_REQVERIFY discussion in the
"Intuition Requesters and Alerts" chapter and the IDCMP_SIZEVERIFY
discussion in the "Intuition Windows" chapter.

This message type is broadcast to all IDCMP on the screen that have this
flag set, not just to the active window.  If the application has this flag
set, it should be prepared to handle the event even if it is not active.

9 Intuition Input and Output Methods / Function Reference

The following are brief descriptions of the Intuition functions that
relate to the use of input and output under Intuition. See the Amiga ROM
Kernel Reference Manual: Includes and Autodocs for details on each
function call.

          Table 9-1: Functions for Intuition Input and Output
 |                                                                    |
 |    Function                    Description                         |
 |  ModifyIDCMP()  Change the message filter for an IDCMP.            |
 |                 Starting in V37, this function has a return value. |

Converted on 22 Apr 2000 with RexxDoesAmigaGuide2HTML 2.1 by Michael Ranner.
